Taper Head
GR5 Titanium Bolts M6*31mm High Strength Tapered Head Hex Socket Bolts
- Grade
- GR5 (Ti-6Al-4V)
- Drive
- Inner Hex Socket
- Head Type
- Conical / Tapered
- Feature
- High Shear Resistance
895+
MPa Minimum Tensile Strength (GR5)
44%
Weight Reduction vs. 316 Stainless
≤1hr
Cyprus Engineering Inquiry Turnaround
100%
Ultrasonic & Go/No-Go Gauge Tested
Factory Direct Inventory
Precision Titanium Head Bolts for Cypriot Heavy Industry
Manufactured using cold heading, CNC profile turning, and cold rolled threads for exceptional shear and fatigue strength.
Umbrella Head
M6*12 Titanium Allen Hex Bolts Umbrella Type Screws Bike Frame Bolt
- Grade
- GR5 Aerospace
- Head Type
- Low-Profile Umbrella
- Size
- M6 × 12mm
- Application
- Frame & Fairing Fitting
Heavy Duty
GR5 Titanium Bolts M14*1.0*35mm High Quality Umbrella Head Hex Socket Bolts
- Grade
- Ti-6Al-4V Alloy
- Thread
- M14 × 1.0 Fine Pitch
- Length
- 35mm Profile
- Torque
- Extended Flange Load
Countersunk
GR5 Titanium Bolts M10*20mm Factory Price Countersunk Head Hex Socket Bolts
- Grade
- GR5 (Ti-6Al-4V)
- Head Type
- Flush Countersunk (90°)
- Drive
- Hexagon Socket
- Standard
- DIN 7991 Equivalent
Big Pan Hex

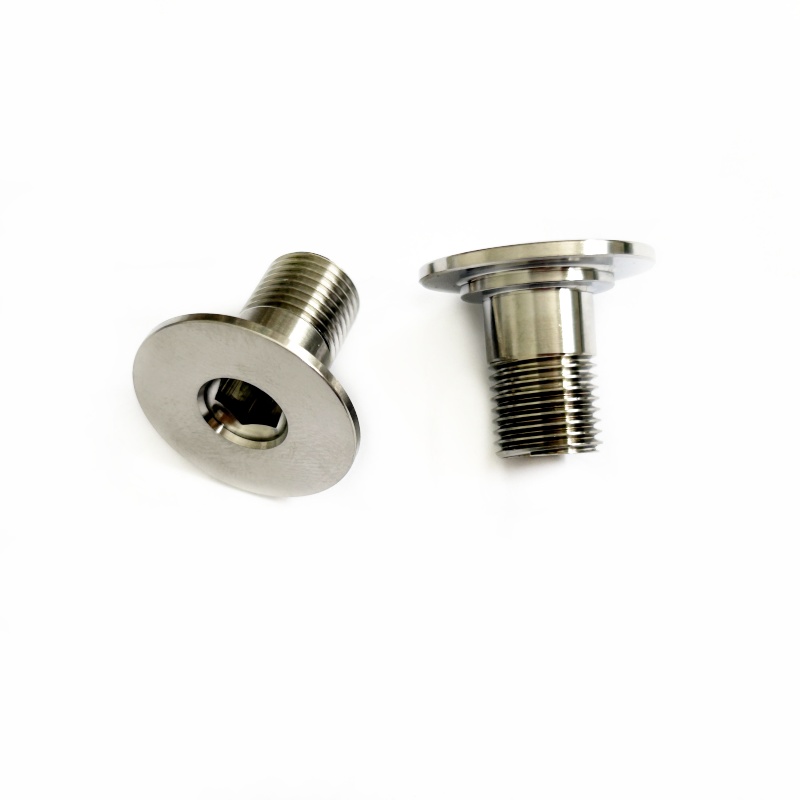

GR5 Titanium Big Pan Hexagon Head Bolts in Stock M10*18
- Grade
- GR5 Certified Stock
- Dimension
- M10 × 18mm
- Bearing Area
- Broad Pan Flange
- Protection
- Marine Atmospheric Anti-Seize
DIN 912
DIN912 M5 Titanium Socket Head Cap Screw Titanium Alloy Bolt
- Standard
- DIN 912 / ISO 4762
- Diameter
- M5 Thread Series
- Finish
- Polished / Micro-Machined
- Compliance
- EN 10204 3.1 Traceable
Flange Drilled
GR5 Titanium Bolts M8*20mm Factory Price Hex Flange Head Drilled Bolts
- Grade
- GR5 (Ti-6Al-4V)
- Feature
- Pre-Drilled Safety Wire Holes
- Size
- M8 × 20mm Pitch 1.25
- Use
- Motorsport & Marine Vibration
Torx Drive
GR5 Titanium Bolts M5*13mm Lightweight Countersunk Head Inner Torx Bolts
- Drive
- Torx T25 Drive Socket
- Geometry
- Low-Mass Countersunk
- Size
- M5 × 13mm
- Surface
- Natural / Anodized Option
Cypriot Engineering Landscape
High-Yield Application Scenarios Across Cyprus
Cyprus occupies an extraordinary climate niche in the Eastern Mediterranean: intense UV radiation, high ambient salinity from coastal winds, elevated sea temperatures, and expanding high-tech infrastructure.
Luxury Yacht Rigging & Marina Infrastructure in Limassol & Ayia Napa
Marine hardware in the Mediterranean suffers severe chloride-induced pitting and crevice corrosion. Limassol Marina and Ayia Napa Marina support state-of-the-art superyachts, offshore catamarans, and composite hulls where standard 316 stainless fasteners experience pitting corrosion rates in warm seawater (exceeding 28°C in Cypriot summers). Our GR5 Ti-6Al-4V titanium head bolts form an instantaneous, impenetrable titanium dioxide (TiO2) passive ceramic shield, totally neutralizing chloride ion penetration while shedding 44% weight from racing masts, outdrive brackets, and deck hardware.
Seawater Desalination Plants & Offshore SWRO Infrastructure
With critical municipal water facilities such as the Dhekelia, Larnaca, and Vassilikos Desalination Plants running at relentless reverse osmosis high-pressure cycles, bolt failure due to stress corrosion cracking (SCC) causes catastrophic hydraulic downtime. Navzo manufactures customized M10 to M24 titanium flanged hex head bolts designed to hold high-pressure duplex manifolds, valve flanges, and intake strainer baskets immune to bio-fouling, chlorination agents, and high-salinity brine discharge.
Concentrated Solar Power (CSP) & Coastal Utility PV Parks
Under the intense Cyprus solar index, inland locations like Nicosia and the Troodos foothills experience drastic diurnal temperature swings ranging from 42°C midday down to near-freezing winter nights. Traditional carbon steel fasteners gall, seize, and suffer rapid thermal fatigue across parabolic mirrors and solar trackers. Navzo precision rolled-thread titanium cap screws offer an ultra-stable thermal expansion coefficient (8.6 × 10^-6 /K), preventing pre-load relaxation and bolt loosening across decades of renewable operation.
Material Metallurgy Benchmark
Engineering Comparison: Fastener Alloys Under Cypriot Marine Conditions
Real-world testing parameters comparing metallurgical strength, density, and Mediterranean saltwater corrosion resistance.
| Alloy Specification | Yield Strength (MPa) | Tensile Strength (MPa) | Density (g/cm³) | PREN Rating | Crevice Corrosion in 30°C Seawater |
|---|---|---|---|---|---|
| Navzo GR5 Titanium (Ti-6Al-4V) | 828 - 910 | 895 - 1050 | 4.43 | Immune (>50) | Completely Immune (Zero Pitting Rate) |
| Marine Grade 316L Stainless | 220 - 300 | 520 - 680 | 8.00 | 23 - 25 | High Risk (Severe Crevice Pitting under Gaskets) |
| Duplex 2205 (1.4462) | 450 - 550 | 680 - 880 | 7.80 | 35 | Moderate / High Cost Maintenance Required |
| High-Tensile Class 10.9 Steel | 940 | 1040 | 7.85 | N/A | Catastrophic Rapid Rust without Heavy Barrier Coatings |
*PREN (Pitting Resistance Equivalent Number) values demonstrate absolute passivation stability. GR5 titanium fasteners provide an unparalleled strength-to-weight ratio for performance vehicles and corrosive naval assemblies.
Future Development Trends
Procurement & Technological Trends in Cyprus
How the Republic of Cyprus' green transition, maritime bunkering expansions, and luxury automotive clubs are transforming fastener specifications.
Stringent Maritime Decarbonization & EU Eco-Directives
With the EU's 'Fit for 55' and Emissions Trading System (ETS) tightening regulations on ships docking in Limassol and Larnaca ports, fleet managers are undergoing aggressive lightweighting overhauls. Every kilogram shed above the waterline directly cuts propulsion energy. Replacing marine-grade steel fasteners with Navzo Grade 5 Titanium umbrella and socket cap screws eliminates structural deadweight while complying with zero-toxicity environmental standards for ballast and cooling water systems.
Expansion of Supercar Tuning & Troodos Rally Motorsport
Cyprus hosts one of the highest concentrations of exotic hypercars and enthusiast tuning garages in Southeastern Europe. In addition, the challenging gravel terrains of the Cyprus Rally demand suspension hardware capable of absorbing brutal multi-axis shock loads. Navzo's drilled hex flange titanium bolts (safety-wire ready) and burnt blue wheel studs have become the standard upgrade across performance shops in Nicosia, Paphos, and Limassol for unsprung weight minimization.
Shift Toward Resilient Coastal Construction & Architectural Hardware
High-end coastal real estate projects across the Limassol beachfront, Paphos luxury villas, and architectural canopies face constant sea salt spray. Architects and structural engineers are increasingly specifying PVD-coated and natural satin titanium architectural bolts. While initial material costs exceed stainless steel, life-cycle cost analysis reveals zero replacement costs across a 50-year service life, completely ending rust bleed down decorative white facade surfaces.
Manufacturing Excellence Since 2011
Why Cypriot Engineers & Buyers Choose Navzo Precision
Strategically situated in Baoji—China's renowned "Titanium Valley"—controlling the entire production chain from certified ingot to finished CNC head bolt.
100% Traceable Mill Stock
All raw materials originate from Baoji primary smelting mills. Every batch of GR5 (Ti-6Al-4V) bar is accompanied by strict EN 10204 3.1 Mill Test Certificates (MTC) verifying chemical composition (Ti, Al 5.5-6.75%, V 3.5-4.5%) and physical tensile performance before cold heading begins.
Integrated Cold Heading & CNC Turning
We run dedicated multi-station cold headers and multi-axis CNC turn-mill machining centers under one roof. By cold-rolling fastener threads rather than cutting them, grain flow lines remain continuous and uninterrupted, yielding up to 30% higher cyclic fatigue endurance under dynamic loads.
Alibaba #4 Verified Supplier & Rapid Cyprus Export
With an average customer response time of ≤1 hour, on-site verification, and an active export footprint covering key Western & Mediterranean markets, we coordinate express air-courier customs delivery to Larnaca (LCA) and Paphos (PFO), plus consolidated sea freight into Limassol Port with complete EUR.1 support.
Purchasing Knowledge Base
Frequently Asked Questions by Cyprus Procurement Teams
Key technical and logistical considerations when importing high-grade titanium fasteners into Cyprus.
Why choose GR5 titanium over A4-80 (316) stainless for marine projects in Limassol?
While A4-80 stainless steel resists general atmospheric oxidation, it is highly prone to crevice corrosion and pitting attack in stagnant Mediterranean seawater at summer temperatures exceeding 25°C. Navzo GR5 titanium forms a self-healing titanium oxide film that provides 100% immunity to chlorides and hypochlorites, while reducing weight by 44% and offering significantly higher tensile strength (895 MPa vs. 800 MPa).
How do you prevent thread galling during installation into aluminium or titanium blocks?
Titanium has a natural tendency to gall when torqued dry against another reactive metal. For Cyprus automotive and marine installations, we recommend a quality anti-seize paste (such as copper-based, nickel-based, or molybdenum disulfide). Additionally, Navzo offers Physical Vapor Deposition (PVD) coatings and micro-arc surface oxidation which dramatically lower thread friction coefficients to ~0.12.
What are the customs, VAT, and shipping timelines for delivery to Cyprus?
For urgent maintenance or sample evaluation, express air shipments (DHL/FedEx/UPS) arrive at Larnaca or Paphos international hubs within 4 to 7 business days. For volume industrial orders, sea freight to the Port of Limassol typically requires 22 to 30 days. We provide commercial invoices, packing lists, Mill Test Certificates (EN 10204 3.1), and accurate HS codes (typically 8108.90) for straightforward EU customs clearance.
Can Navzo machine custom titanium head bolts from 2D/3D CAD drawings?
Yes. Beyond standard DIN 912, DIN 7991, and ISO standards, our Baoji engineering department works directly with PDF, DWG, and STEP files. We manufacture custom flange diameters, tapered conical heads, pre-drilled lock-wire shanks, reverse threads, and custom thread pitches (e.g., M10×1.0, M12×1.25, M14×1.5) with strict dimensional tolerances within ±0.01mm.
What surface finish options are suitable for high-UV Mediterranean outdoor exposure?
For external marine deck hardware or architectural facades under the Cyprus sun, we recommend high-voltage Anodized (Gold, Blue, Purple, Green), PVD Titanium Nitride (Gold/Black), or Precision Polished natural finishes. Unlike organic paints or powder coatings, titanium anodization and PVD are inorganic molecular surfaces that will not fade, chip, peel, or chalk under intense Mediterranean solar ultraviolet radiation.
What is the Minimum Order Quantity (MOQ) for bespoke orders serving Cyprus?
Standard inventory head bolts (DIN 912 socket screws, conical taper bolts, umbrella bolts) feature low MOQs starting at 100 to 200 pieces per specification. For custom CNC machined parts or non-standard metric threads, prototype pilot batches are available for engineering validation before initiating high-volume series runs.
